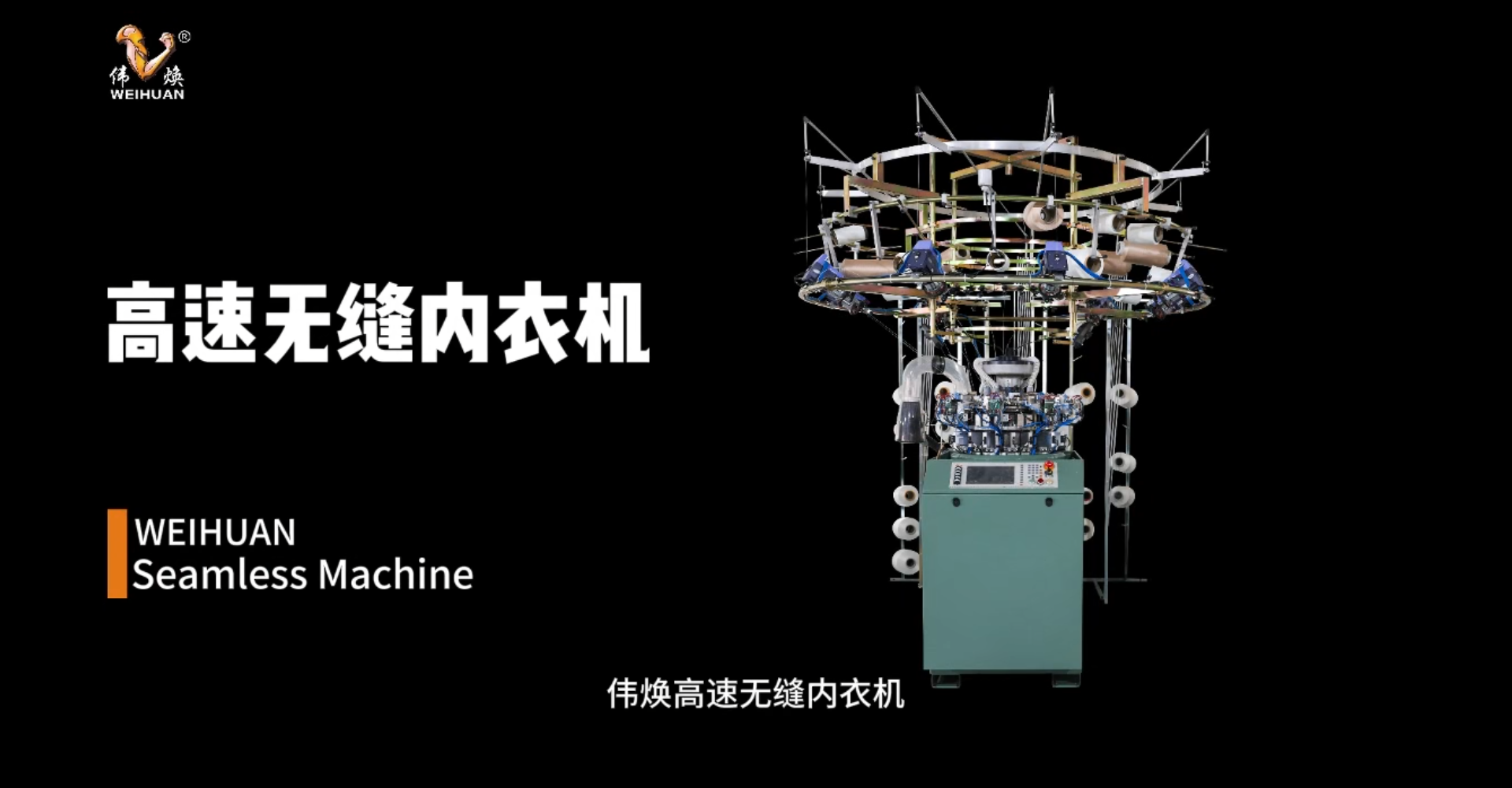

8-FEEDS knitting seamless underwear machine

Securities code: 874017

Product Features:

Seamless underwear knitting machine can freely knit various mixed weave patterns such as tuck stitch, mesh, float stitch, plating stitch, terry and twill. Raw materials including cotton yarn, blended yarn, bare spandex, chemical filament and elastic yarn are integrally high-speed weft-knitted and shaped under computer program control. It is widely applied in knitted apparel fields such as underwear, panties, bras, swimwear, yoga wear and sportswear.

Main Technical Parameters
Cylinder Diameter	12 inch ~ 20 inch
Gauge	22G, 26G, 28G, 32G
Knitting Feeds	8 knitting feeds
Max. Rotation Speed	80~110rpm
Power Consumption	1. Main servo motor power: PNJ model: 2.2KW; GNJ model: 3KW
	2. Suction fan power: 11KW fan for 10 machines
	3. Air compressor: 11KW compressor for 10 machines (Compressed air: 50L/min, 6Bar)
Electric Control System	Self-developed high-performance, highly integrated intelligent control system, dual control by large touch screen and keyboard
Loop Density Control	8 density stepping motors with closed-loop control; LCD displays real-time loop density data of each feed
Needle Selectors	16 pieces (2 pcs 16-level needle selectors per feed)
Yarn Feeders	8 sets; an extra KTF elastic yarn feeder equipped for Feed 2 and Feed 6 respectively
Yarn Breakage Detection	Serial photoelectric yarn break sensors (43 pcs as standard)
Bare Spandex Feeder	8 sets (optional)
Lubrication Device	1 set pneumatic circulating oiler
Overall Machine Weight	Approx. 620~775kg
Standards Compliance	This machine complies with CE and UL standards

Function Overview:

① Yarn storage feeder: Delivers yarn with constant tension, automatically detects and alarms upon abnormal yarn feeding.

② Elastic yarn feeder: Automatically adjusts and delivers elastic yarn with constant tension as set for different fabric sections.

③ Photoelectric sensing controller: Real-time monitoring of yarn feeding status, alarms and stops the machine in case of abnormalities.

④ Bare spandex feeder: Delivers bare spandex with preset tension synchronously with machine speed to realize accurate synchronous yarn feeding.

⑤ Servo motor: The servo controller adjusts motor speed via pulses to achieve stable and precise cylinder rotation speed.

⑥ Stepping motor: Adopts closed-loop pulse control to precisely adjust loop density of each fabric section.

⑦ Needle selector: Equipped with 16-stage selector blades, featuring stable performance, low power consumption, low heat generation and fast response speed.

⑧ Yarn feed carriers: Equipped with 3 face yarn carriers, 3 ground yarn carriers and 2 plating yarn carriers respectively.
