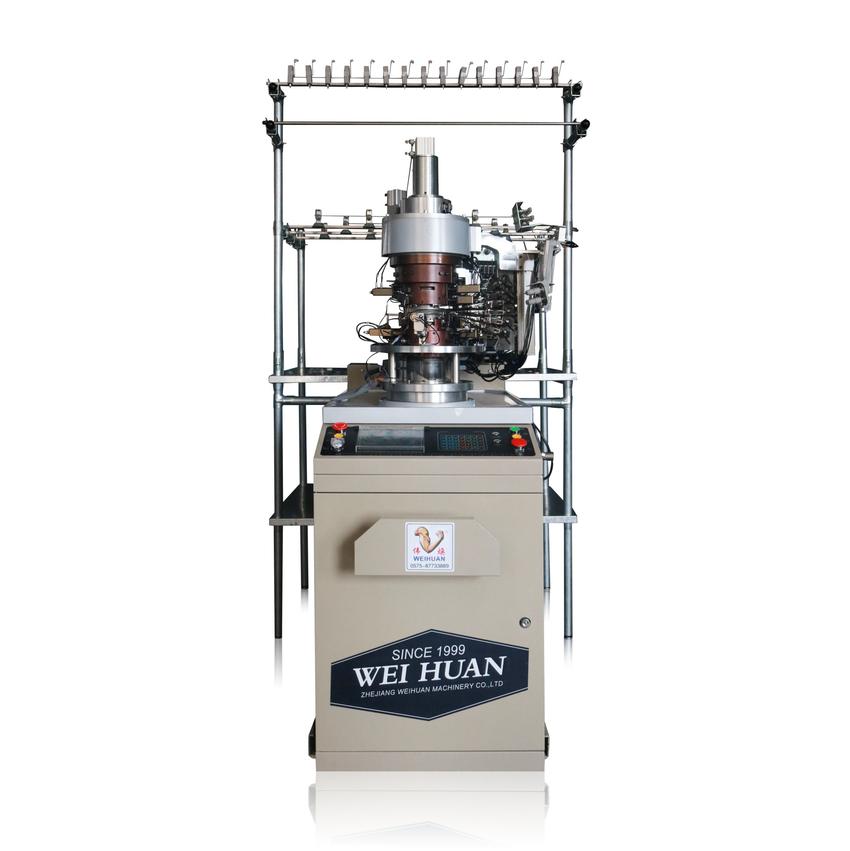

WH605 DOUBLE CYLINDER AUTOMATIC

Securities code: 874017

TECHNICAL FEATURE:

① Fully automatic computer control system

② Electric control finger conversion and pin

③ With servo motor

④ With 7 yarn finger

⑤ 4 colors yam continuous exchange knitting

⑥ Various fault sensors ( yam broken, needle broken, power cut and electronic fault )

⑦ With automatic lubricant device

⑧ Downward socks discharging function

⑨ Adjust the knitting condition by motor

⑩ "Y"、"L"form of heel part

⑪ 2 elastic feeder

Model		Cylinder Diameter		Number of Needles		Gauge			Max. Speed (RPM)
WH605		4 INCH		108N-176N		9-14			280/350

Sock Types			Power Supply				Control Box Power			Servo Motor Power
Multi-layer rib top, embossed jacquard, lace, tuck stitch, stripe knitting			AC-220V/380V/440V, 50/60Hz				0.5KW			1.5KW

Machine Model	Overall Dimension (L×W×H)				Packing Size (L×W×H)			Net Weight			Gross Weight
WH605	160×120×240CM				160×120×240CM			320KG			400KG
