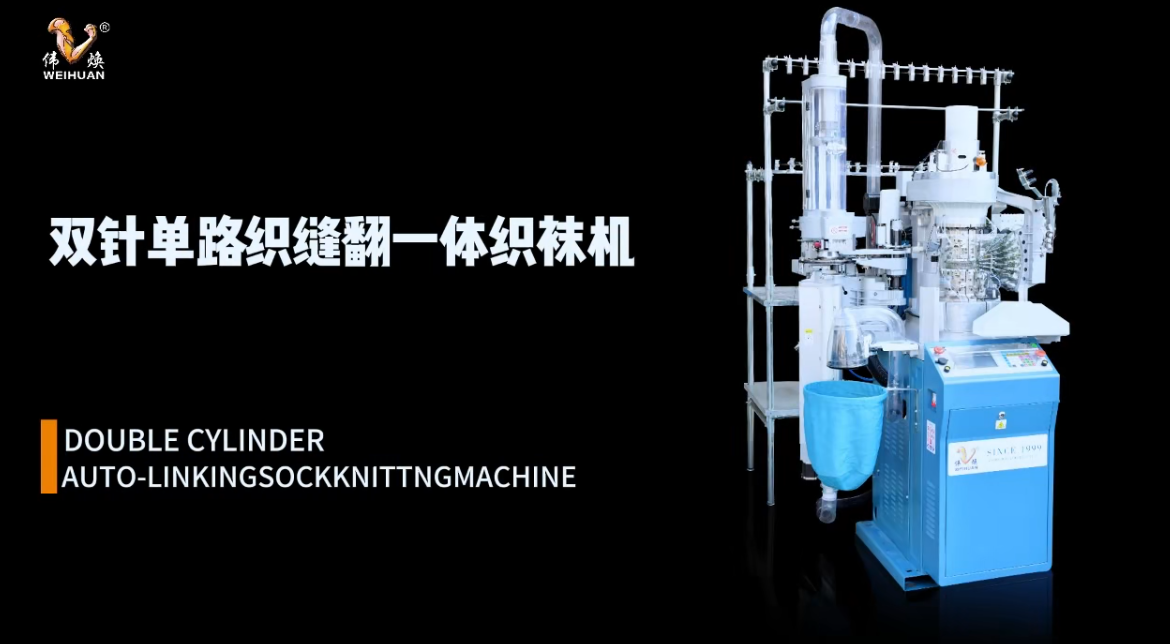

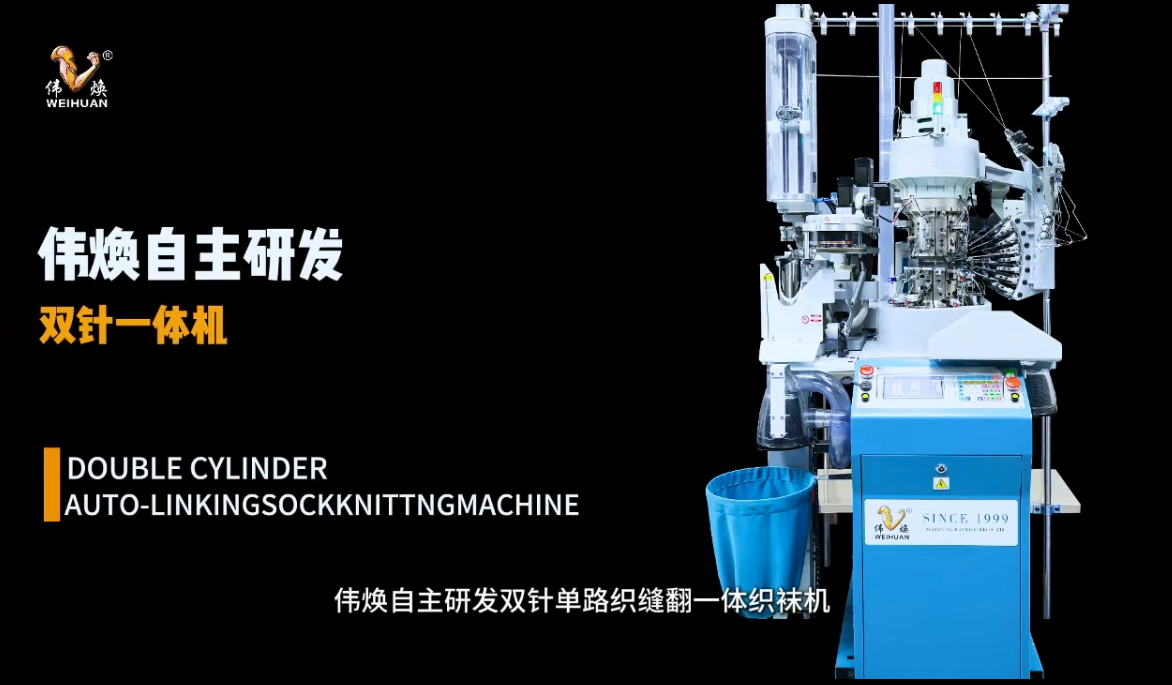

WHYS-B/C DOUBLE CYLINDER AUTO0LINKING

WHYS-B/C

Securities code: 874017

TECHNICAL FEATURES:

① Full automatic computerized control system

② Electric control conversion of feeders and pins

③ With servo motor direct driving

④ With 7 yarn feeders

⑤ 4 colors yarn knitting for continuous exchange

⑥ Various fault detecting sensors (yarn broken,needle broken,power cut and electronic fault)

⑦ With automatic lubricanting device

⑧ Socks discharging function from downward of machine

⑨ Motor control adjustment of socks knitting status

⑩ To able knit "L" and "Y" socks heel

⑪ Socks length detecting device

⑫ Pneumatic tracting device

⑬ No mechanical down and up picker device,reducing the rate of needle broken. to achieve the machine down and up picker control by selectors.

Sock Types			Power Supply			Control Box Power			Servo Motor Power
Multi-layer rib top, embossed jacquard, lace, tuck stitch, stripe knitting			AC-220V/380V/440V, 50/60Hz			0.5KW			2KW

Machine Model	Overall Dimension (L×W×H)			Packing Size (L×W×H)			Net Weight			Gross Weight
WHYS-B/C	130×200×260CM			120×120×170CM			450KG			500KG
