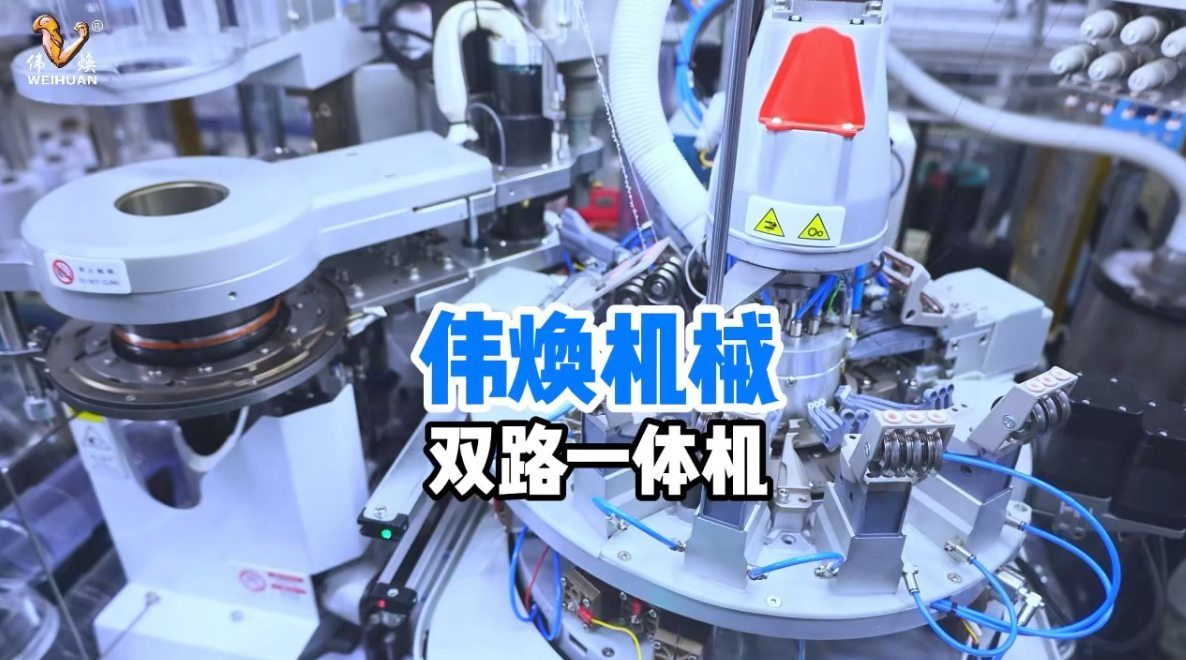

SINGLE CYLINDER TWO FEEEDS AUTOMATIC SOCKS MACHINE

WHL2-B/BM-2

Securities code: 874017

Double Feed
Model	Cylinder, Needles & Needle Selectors	Technical Specifications	Function Introduction
WHL2-B/BM-2	3.75" 96-240 needles (N) 9 electronic needle selectors	Max. Speed: Plain: 350 RPM Terry: 300 RPM Gauge: 6.5-21 12 plating carriers 2 feeds, 14 pneumatic carriers Scissor disc can stop operation when trimming is unnecessary	Double feed, 5 colors, 2 elastic yarn carriers, 5 colors per row, up to 13 colors on socks in total. 3-level terry, high heel, large heel, small heel, left & right feet, 180° reverse sock nozzle, one-step invisible socks, imitation double-cylinder rib top, 2-color toe/heel, 2-color base thread, 3D miniature stereo terry patterns, independent toe closing device for linking. Equipped with network intelligent management system
