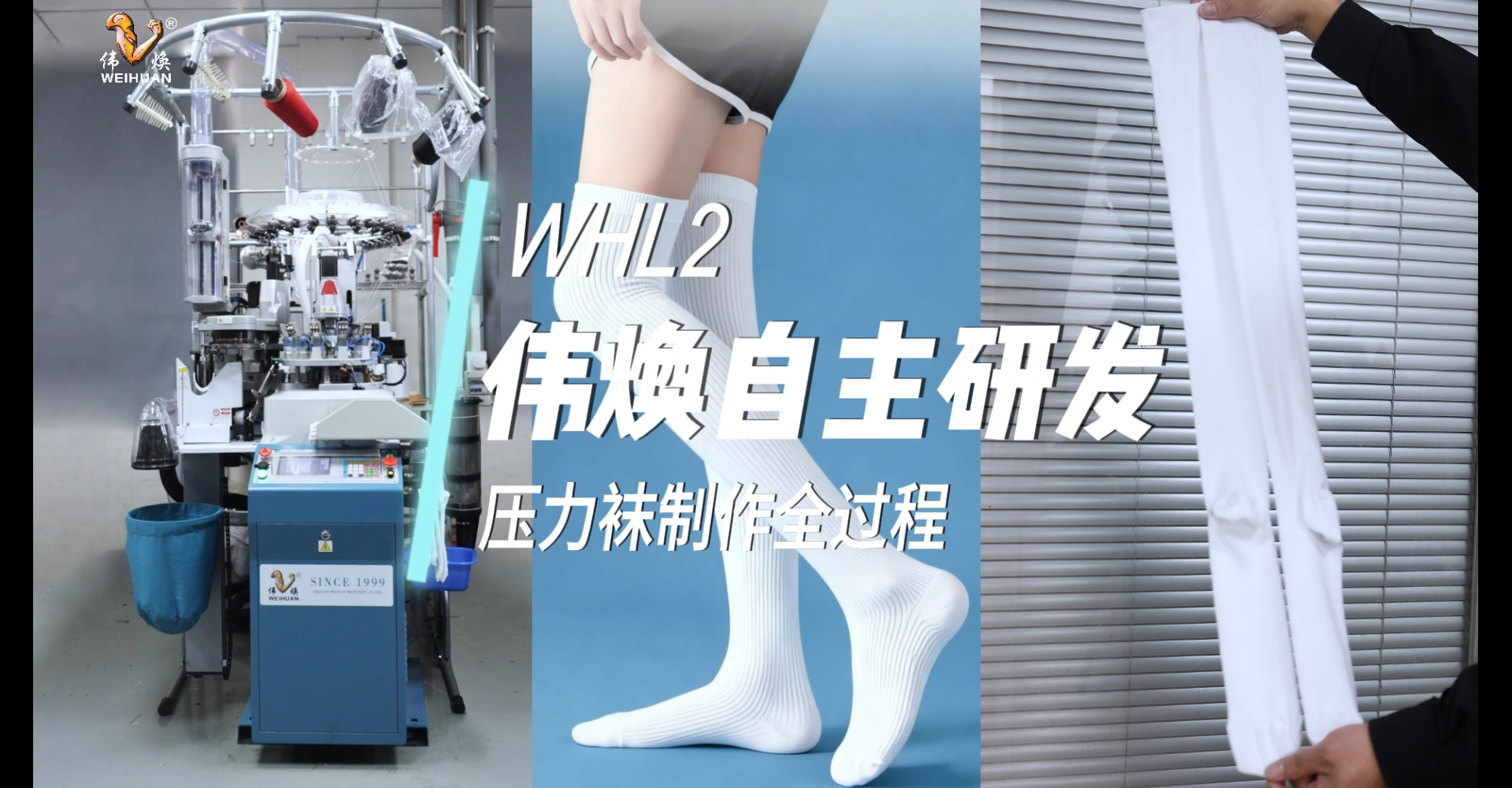

WHL2-A9/A8M/A9M//B9/B8M/B9M/B8R/B9R/C8/C9/C8M/C9M/C8R/C9R
Securities code: 874017
| Single Feed | |||
Model | Cylinder, Needles & Needle Selectors | Technical Specifications | Function Introduction |
| WHL2- A9/ A8M/A9M | 3.5" 96 - 220 needles (N) 8/9 electronic needle selectors | Max. Speed: Plain: 350 RPM Terry: 300 RPM Gauge: 6.5-21 15-18 plating carriers 9/10 pneumatic carriers per feed Scissor disc can stop when no trimming needed | Single feed, 6/7 colors, 2 elastic carriers, 6/7 colors in one row. Up to 16-19 colors on the sock. 3-level terry, high heel, large heel, small heel, L/R feet, 180° reverse sock nozzle, One-step invisible sock, imitation double-cylinder rib top, 2-color toe/heel, 2-color base thread, 3D small stereo terry patterns, independent toe-closing device With network intelligent management |
| WHL2- B9/ B8M/B9M | 3.75", 4" 96 - 240 needles (N) 8/9 electronic needle selectors | Max. Speed: Plain: 350 RPM Terry: 300 RPM Gauge: 6.5-21 18 plating carriers 9/10 pneumatic carriers per feed Scissor disc can stop when no trimming needed | Single feed, 6/7 colors, 2 elastic carriers, 6/7 colors in one row. Up to 16-19 colors on the sock. 3-level terry, high heel, large heel, small heel, L/R feet, 180° reverse sock nozzle, One-step invisible sock, imitation double-cylinder rib top, 2-color toe/heel, 2-color base thread, 3D small stereo terry patterns, independent toe-closing device With network intelligent management |
| WHL2- C8/C9/ C8M/C9M | |||
| WHL2- B8R/B9R | 3.75", 4" 96 - 200 needles (N) | Max. Speed: Plain: 350 RPM Random terry: 230 RPM Gauge: 6.5-21 18 plating carriers 9/10 pneumatic carriers per feed Scissor disc can stop when no trimming needed | Single feed, 6/7 colors, 2 elastic carriers, 6/7 colors in one row. Up to 16-19 colors on the sock. 3-level terry, high heel, large heel, small heel, L/R feet, 180° reverse sock nozzle, One-step invisible sock, imitation double-cylinder rib top, 2-color toe/heel, 2-color base thread, 3D small stereo terry patterns, independent toe-closing device With network intelligent management |
| WHL2- C8R/C9R | |||
